MEMS Oscillator Programmer

Time Machine II

The Time Machine II is a complete MEMS oscillator and resonator programmer kit. It allows you easily configure SiTime's field programmable timing solutions to your exact specification and create customized drop-in replacements for legacy quartz devices in seconds.

Reduce design time with instant samples
Optimize system performance with custom frequencies
Reduce EMI with programmable drive strength
Enable fast prototyping with always-in-stock field programmable devices

Features

USB powered programmer
Add-on cards with directional connectors and indicators
Anti-slip bumps hold programmer in place
One-click programming software
Built-in part number generator
Programming history
Auto software update
Compatible with all PCs and Microsoft Windows

Small carrying case holds programmer and all accessories

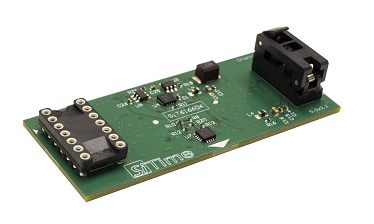

Add-on cards (socket cards) support six oscillator packages
Sample field programmable device packs
Complete documentation

Software and hardware upgradable for future products
Durable socket card connectors rated at 5,000 insertions

Supported Devices


Device	Frequency	Stability (ppm)	Output Type	Supply Voltage (V)	Temp. Range (°C)	Package Size (mm)
SiT1602	52 standard frequencies	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-20 to +70, -40 to +85	2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT1618	33 standard frequencies	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-40 to +105, -40 to +125	2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT2001	1 to 110 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-20 to +70, -40 to +85	SOT23 (2.9x2.8)
SiT2002	115 to 137 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-20 to +70, -40 to +85	SOT23 (2.9x2.8)
SiT2018	1 to 110 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-40 to +105, -40 to +125	SOT23 (2.9x2.8)
SiT2019	115 to 137 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-40 to +105, -40 to +125	SOT23 (2.9x2.8)
SiT2020	1 to 110 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-55 to +125	SOT23 (2.9x2.8)
SiT2021	119 to 137 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-55 to +125	SOT23 (2.9x2.8)
SiT2024	1 to 110 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-40 to 85, -40 to 105, -40 to 125, -55 to 125	SOT23 (2.9x2.8)
SiT2025	115 to 137 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-40 to 85, -40 to 105, -40 to 125, -55 to 125	SOT23 (2.9x2.8)
SiT3807	31 frequencies	±25, ±50	LVCMOS	1.8, 2.5, 2.8, 3.3	-20 to +70, -40 to +85	2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT3808	1 to 80 MHz	±25, ±50	LVCMOS	1.8, 2.5, 2.8, 3.3	-20 to +70, -40 to +85	2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT3809	80 to 220 MHz	±25, ±50	LVCMOS	1.8, 2.5, 2.8, 3.3	-20 to +70, -40 to +85	2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT8008	1 to 110 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-20 to +70, -40 to +85	2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT8009	115 to 137 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-20 to +70, -40 to +85	2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT8208	1 to 80 MHz	±10, ±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-20 to +70, -40 to +85	3.2x2.5, 5.0x3.2, 7.0x5.0
SiT8209	80 to 220 MHz	±10, ±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-20 to +70, -40 to +85	3.2x2.5, 5.0x3.2, 7.0x5.0
SiT8918	1 to 110 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-40 to +105, -40 to +125	2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT8919	115 to 137 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-40 to +105, -40 to +125	2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT8920	1 to 110 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-55 to +125	2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT8921	119 to 137 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-55 to +125	2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT8924	1 to 110 MHz	±20, ±25, ±30, ±50	LVCMOS	1.8, 2.5 to 3.3	-40 to +85, -40 to +105, -40 to +125, -55 to +125	2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT8925	115 to 137 MHz	±20, ±25, ±30, ±50	LVCMOS	1.8, 2.5 to 3.3	-40 to +85, -40 to +105, -40 to +125, -55 to +125	2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT9003	1 to 110 MHz	±50, ±100	LVCMOS	1.8, 2.5, 2.8, 3.3	-20 to +70, -40 to +85	2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
SiT9005	1 to 141 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-20 to +70, -40 to +85	2.0x1.6, 2.5x2.0, 3.2x2.5
SiT9025	1 to 150 MHz	±20, ±25, ±50	LVCMOS	1.8, 2.5 to 3.3	-40 to +85, -40 to +105, -40 to +125, -55 to +125	2.0x1.6, 2.5x2.0, 3.2x2.5
SiT9120	31 standard frequencies	±20, ±25, ±50	LVPECL, LVDS	2.5, 3.3, 2.25 to 3.63	-20 to +70, -40 to +85	3.2x2.5, 5.0x3.2, 7.0x5.0
SiT9121	1 to 220 MHz	±20, ±25, ±50	LVPECL, LVDS	2.5, 3.3, 2.25 to 3.63	-20 to +70, -40 to +85	3.2x2.5, 5.0x3.2, 7.0x5.0
SiT9122	220 to 625 MHz	±20, ±25, ±50	LVPECL, LVDS	2.5, 3.3, 2.25 to 3.63	-20 to +70, -40 to +85	3.2x2.5, 5.0x3.2, 7.0x5.0

Kit Ordering Info

Time Machine II Programming Kit

Kit Contents:

SiT6150DK MEMS oscillator and active resonator programmer
3 socket cards (SiT6160DK, SiT6161DK, SiT6165DK)
USB cable
Tweezers
Sample field programmable device packs (SiT2001, SiT8008, SiT9121)
